WATERPROOFING

N500 GEO PINT PLUS - POLYESTER GEOTEXTILE - 43 kg

Exposed Membrane Trafficable

Main Features

Waterproof
Water Resistant
Geotextile

Technical Specifications

Containers: Net weight: 43 kg
Finish: Polyester Geotextile
Coverage: 8.5 m2/Rollo
Features: Waterproofing, Traffic-resistant, Exposed

Documents

📄
Product Sheet PDF • 1.2 MB

Product Description

LINE N 500 GEO PINT PLUS is a very high performance product that combines excellent waterproofing properties of standard plastic asphalt with high density polyethylene (HDPE) formulated and produced by the Emapi. The membrane incorporates high density polyethylene, in its central core, lower layer. The assembly is protected from overexertion of mechanical traction by a layer of polyester geotextile fabric nonwoven thermo-fixed of high grammage of remarkable dimensional stability that guarantees the most demanding requests in folding, traction, flexion and punzonado. To get a exceptional finish on surface, Emacril, acrylic waterproof roof coating could be apply.

SURFACE PREPARATION FOR WATERPROOFING
The surface must be completely dry, stable and homogeneous, as well as free of foreign bodies or puncture-sharpeners and free of oil, grease, loose masonry, hydrocarbons, or other materials that can prevent the perfect adherence of the membrane and affect the durability of it.

POLYESTER GEOTEXTILE

The polyester geotextile is a material whose qualities of flexibility, stability and resistance are invariably transferred to the membranes to which it is integrated. Whether as a core core or as a self-protecting layer base (on passable membranes), the result is a product whose quality standards far exceed the demands of the most adverse climatic conditions.

Applications

🏷️ Top layer Polyester Geotextile / 43 kg
Roll Length 10 m
Roll Width 1 m
Welding Band None
Net Weight 43 kg
Central Core HPDE
Body Emapi's Normalized Asphalt

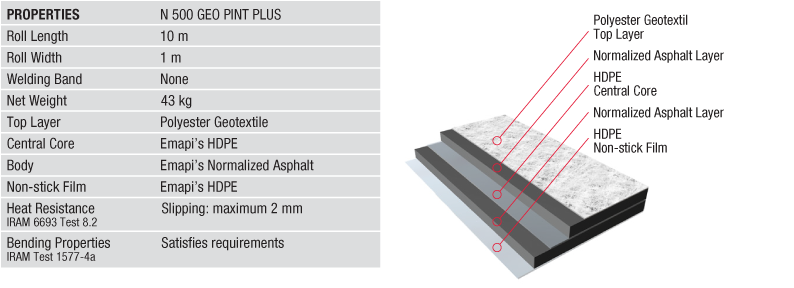

Material Composition

Top Layer   Polyester Geotextile
Non-stick Film HDPE
Waterproofing Application

Technical Specifications

Containers: Net weight: 43 kg
Finish: Polyester Geotextile
Coverage: 8.5 m2/Rollo
Features: Waterproofing, Traffic-resistant, Exposed, High adhesion, High durability
